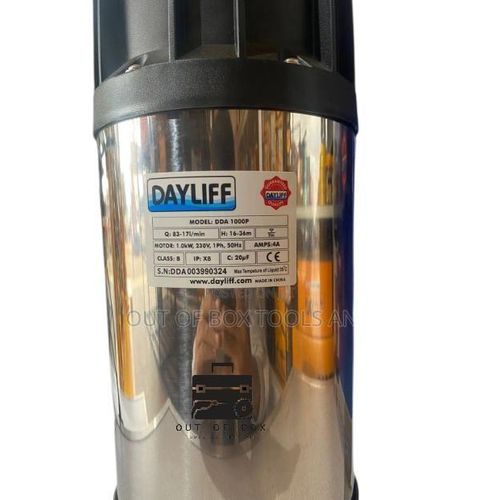

Dayliff Submersible Multistage Centrifugal pumps

-Model: DDA1000P - Power: 1.0 kW (1.3 HP) - Phase / Voltage: Single-phase, 1 × 240 V - Motor Type: Jacketed, liquid‑cooled induction motor (continuous duty) with thermal cut‑out protection - Enclosure/Insulation: Class X8 / Insulation Class B - Construction Materials: Polypropylene impellers and diffusers; engineering plastic casing - Sealing: Single mechanical seal in intermediate oil chamber for enhanced reliability - Cooling: Designed to operate semi-submerged via jacketed motor cooling - Float Switch: Built-in low-level float switch with adjustable clamp and inbuilt capacitor for automatic control - Cable Supplied: 20 m drop cable included - Maximum Immersion Depth: 6 m - Maximum Particle Size: 1.5 mm - Maximum Liquid Temperature: +35 °C - Current Draw: Approx. 4 A - Outlet Size: 1½″ (≈ 5 cm flange) - Dimensions: Height ~440 mm, Width ~150 mm - Weight: Approximately 9.4 kg - Applications: Domestic water supply, rainwater harvesting, well/tank transfer, pressure boosting, and light irrigation - Installation Notes: Requires a minimum 50 × 50 cm area to allow float switch mobility; direct connection to mains via 10 A fuse or MCB; can be fitted with external pressure controller
