12V Auto Battery Analyzer Diagnostic Machine for Car & Motorcycle Batteries

Product Description

Battery voltage: 12V
Battery range: 3AH~250AH
12V system test voltage: DC 9-18V
Special Features: Car battery test
Battery type: Lead-acid battery
Material Type: Plastic& Metal
Battery status of health 0100%

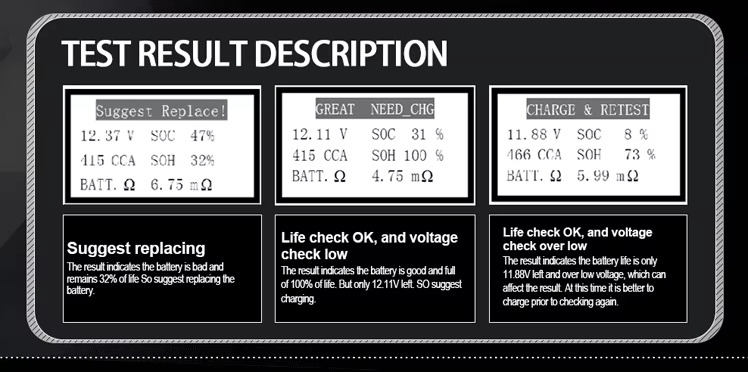

Battery conclusion: Good/OK/Attentionn/Replace
Standard of optional storage battery: CCA IEC，EN DIN JIS
Battery range1:100-170OCCA

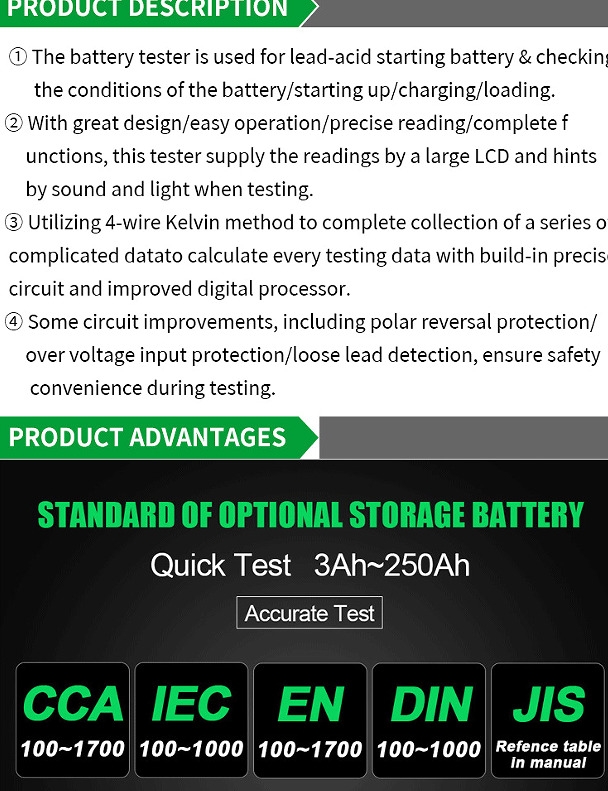

The battery tester is used for lead-acid starting battery & checking the conditions of the batterystarting upcharging/loading.
With great design/easy operation/precise reading/complete functions this tester supply the readings by a large LCD and hints by sound and light when testing.
Utilizing 4-wire Kelvin method to complete collection of a series of complicated datato calculate every testing data with build-in precise circuit and improved digital processor.
Some circuit improvements including polar reversal protection/over voltage input protection/loose lead detection ensure safety and convenience during testing
Package include:
1* Storage battery tester
1* User manual
Note:
Due to the different monitor and light effect the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-3mm measuring deviation due to manual measurement.

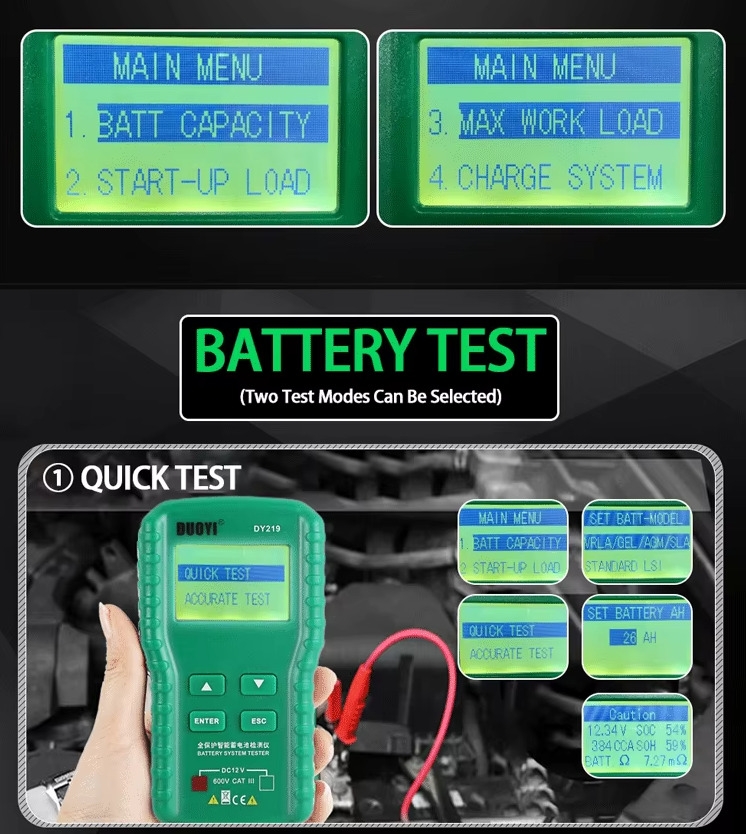

Test mini battery.
Move the battery tester between the two points of the battery.
The easy-to-read display will tell you immediately if there is a fault or if you can use a few minutes to extend battery life a battery tester can be used to test the following items:
