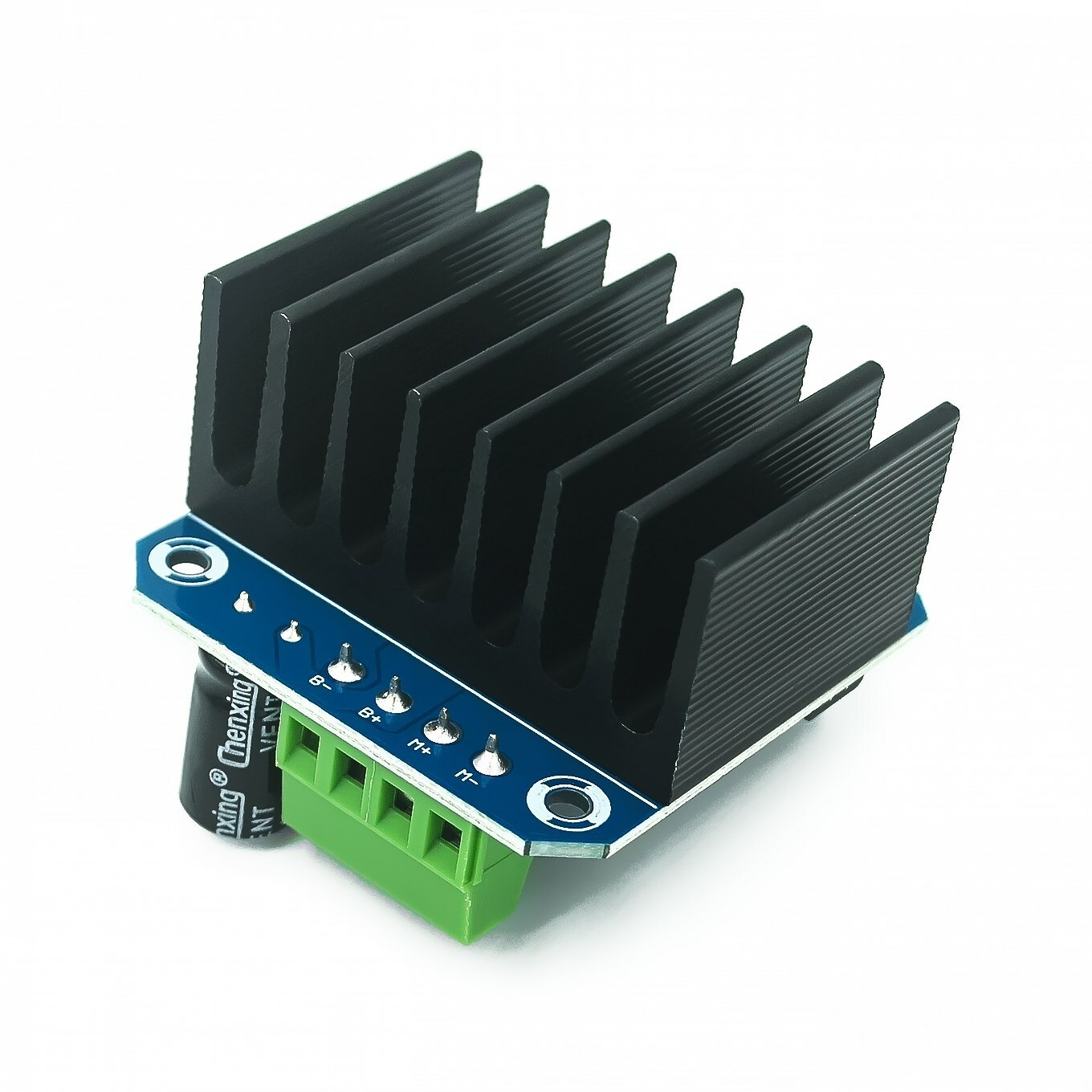

BTS7960B H-bridge 43A High-power DC Motor Driver Module

BTS7960B H-bridge 43A high-power motor driver Module:

The BTS7960 is a fully integrated high current H bridge module for motor drive applications. Interfacing to a microcontroller is made easy by the integrated driver IC which features logic level inputs, diagnosis with current sense, slew rate adjustment, dead time generation and protection against overtemperature, overvoltage, undervoltage, overcurrent and short circuit. The BTS7960 provides a cost optimized solution for protected high current PWM motor drives with very low board space consumption. This driver uses Infineon chips BTS7960 composed of high-power drive full H-bridge driver module with thermal over-current protection. Double BTS7960 H-bridge driver circuit, with a strong drive and braking, effectively isolating the microcontroller and motor driver! It can allow a high current of up to 43A.

Brief Data:

• Input Voltage: 6 ~ 27Vdc.
• Driver: Dual BTS7960 H Bridge Configuration.
• Peak current: 43-Amp. 
• PWM capability of up to 25 kHz. 
• Control Input Level: 3.3~5V. 
• Control Mode: PWM or level 
• Working Duty Cycle: 0 ~100%. 
• Over-voltage Lock Out. 
• Under-voltage Shut Down. 
• Board Size (LxWxH): 50mm x 50mm x 43mm. 
• Weight: ~66g.


Just need four lines from MCU to driver module (GND. 5V. PWM1. PWM2);

isolation chip 5 V power supply (can share with MCU 5 V);

size: 4 * 5 * 1.2 cm;

Able to reverse the motor forward, two PWM input frequency up to 25kHZ;
two heat flow passing through an error signal output;
isolated chip 5V power supply (can be shared with the MCU 5V), can also use the on-board 5V supply;
the supply voltage 5.5V to 27V;
