DF-96DK Automatic Water Level Controller For Water Pump 220V Sensor Probe Water Pump Tank Liquid Level Detector Switch

Description

Report Item

Item Type: Automatic Water Level Controller
Material: ABS
Size: 86*66*49mm
Color: Grey
Rated Current: 25A
Rated Voltage: 220V
Quantity: 1 PCS

                              DF-96D/DF-96DK Instruction Manual

Model A：

single control head on the sink installation instructions to install the

control diagram shown in Figure

A(red)—Upper water level control point. When water level gets to A point,

the probe touch water and controller can stop the pump by auto.

B(blue)—Lower water level control point. When water level gets off B point,

the probe out of reach water and controller can start the pump by auto.

C(black)—Should be placed in bottom of pool as the common line.

D(green) and E(yellow)are connected with C (black).

Model B: under the control of a single pool (ie drainage pond) probe installation instructions to install the two shown in

Figure:

E—Upper water level control point. When water level gets to E point,

the probe touch water and controller can start the pump by auto.

D—Lower water level control point. As liquid level gets off D point,

the probe out of reach water and controller can stop the pump by auto.

C—Should be placed in bottom of pool as the common line.

A&B—disconnected

Model C:

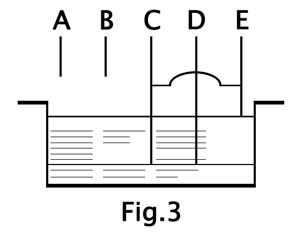

water protection probe installation instructions to install the diagram shown in Figure 3:

C&D—Lower water level control points. When water level gets off this point,

C or D probe out of reach water and controller can stop the pump by auto.

E&C—short-connected;

A&B—disconnected

Model D:

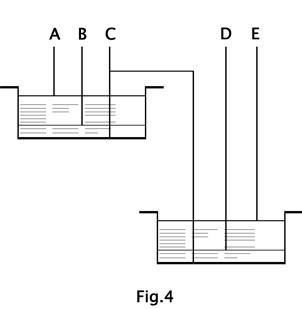

 joint control up and down the pool installation instructions to install the probe is shown in Figure III:

A—Upper water level control point in UP pool. When water level gets to A point ,the probe touch water and controller can stop the pump by auto.

B—Lower water level control point in UP pool. When water level gets off A point, the probe out of reach water and controller can start the pump by auto.

C—Should be placed in bottom of UP and DOWN pools as the common line.

D—Lower water level control point in DOWN pool. When water level gets off D point, the probe out of reach and controller can stop the pump by auto.

E—Upper water level control point in DOWN pool. When water level gets to E point, the probe reach water and controller can start the pump by auto. Then pool starts to drain water. If not, E point disconnected
