ESP32 Type-C USB CH340C WiFi Bluetooth-Compatible Development Board

Description:

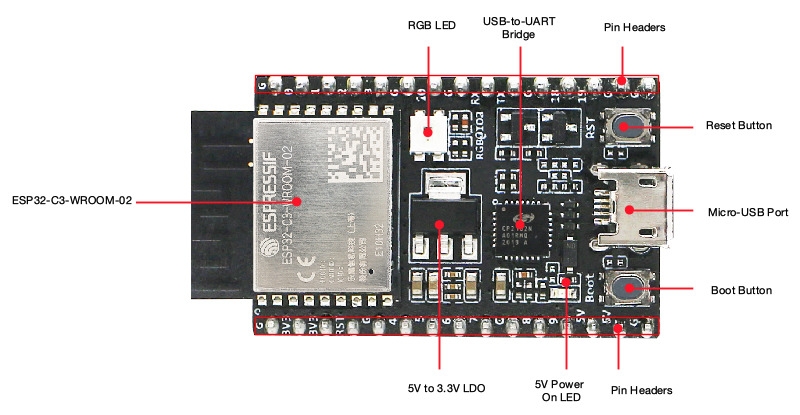

ESP32-C3-DevKitC-02 is an entry-level development board based on ESP32-C3-WROOM-02, a general-purpose module with 4 MB SPI flash. This board integrates complete Wi-Fi and Bluetooth® Low Energy functions. Most of the I/O pins are broken out to the pin headers on both sides for easy interfacing. Developers can either connect peripherals with jumper wires or mount ESP32-C3-DevKitC-02 on a breadboard. It is a general-purpose WI-FI+BT module with low power consumption, widely applicable, integrated SPI flash, and support for wide range wireless communication connections.  It also supports direct connection to Internet via router. The Bluetooth allows users to connect to their phones for signal detection. Its applications include WIFI scheme, WIFIMINI camera, MESH networking, smart home, mobile IoT, etc.

Start Application Development

Before powering up your ESP32-C3-DevKitC-02, please make sure that it is in good condition with no obvious signs of damage.

Required Hardware

ESP32-C3-DevKitC-02

USB 2.0 cable (Standard-A to Micro-C)

Computer running Windows, Linux, or macOS

Power Supply Options

There are three mutually exclusive ways to provide power to the board:

• Micro-USB Port, default power supply
• 5V and GND pin headers
• 3V3 and GND pin headers

Features:
  1. Type-C USB interface
  2. Low power WiFi and Bluetooth
  3. SPI flash
  4. Wide-range wireless communication connection

Parameters:
  1. Working voltage: TYPCE-C 5V
  2. SPI FLASH: Default 32M BIT
  3. Series Rate: 115200BPS
  4. Frequency range: 2412-2484MHZ
  5. Bluetooth Protocol: Bluetooth 4.2BR/EDR and BLE standards
  6. WIFI Protocol: 802.11 B/G/N
  7. Antenna form: Onboard PCB antenna, gain 2DBI
  8. Support interface: UART、SPI、SDIO、I2C、PWM、I2S、IR、ADC、DAC
  4. Work Temperature:-25℃~85℃
  5. Work Humidity:5%~95%RH
  6. Size:51.2*25.6mm

Note

Be sure to use an appropriate USB cable. Some cables are for charging only and do not provide the needed data lines nor work for programming the boards.
