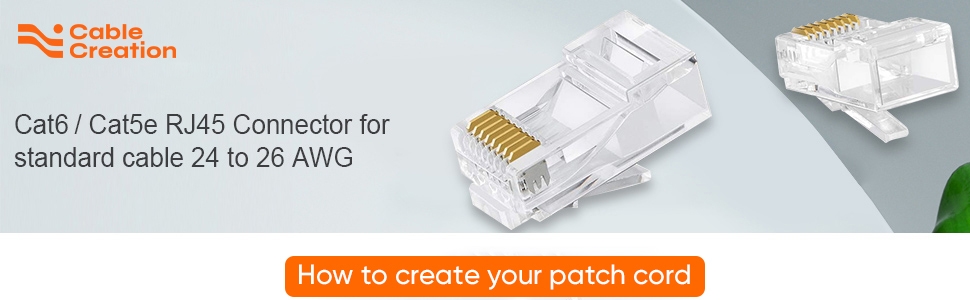

RJ45 Connectors, 100-PACK Cat6 RJ45 Ends, Ethernet Cable Crimp Connectors

• Put the network cable into the stripping port of the cable crimping tool and rotate it two times to pull it out.

• Cut off the pvc jacket and aluminum foil so that the wires are prepared as follows.

• Trim the tips of the wires with a crimping tool to make tips neat and reserve appropriate length.

• Arrange the wire's color in the order and push the wires into the Cat6 connector to the deepest position.
• Note:Your wire's Outside Diameter(OD) including the plastic housing should not exceed 1.0mm to match the wire guide's OD.

• Put the wired crystal RJ45 end into the cable clamp for crimping.

• Align the chip position and press down.

Are you a new buyer?

If you are not Professionals who installs crystal heads, we suggest you buy the crystal heads with load bar. the ASIN:B01K9Z43NU.

These crystal heads are equipped with transparent load bars. You can confirm the wire sequence before the insert them into the connector.
