Solar Panel Aluminum Roof Mounting Mini Rail

Mini Rail Solution for Trapezoidal Roof

UI-SS04 mounting kit, UI-SS04-70 mounting kit and UI-SS07 Mounting kit are all mini rail solutions.


♦They are designed for trapezoidal shape metal sheet roof. They are unity of rail and hook. One component, but two functions.

♦It can work as rail and hook. It can be fixed on roof to hold solar panels directly without aluminum rails.

♦Easy installation mounting kit, suitable for large-scale installation.

SS04 & SS04-70 Installation ：

Panel in landscape, SS04&SS04-70 are suggested.

Different choices for different requirements

UI-SS04 is 30mm height.

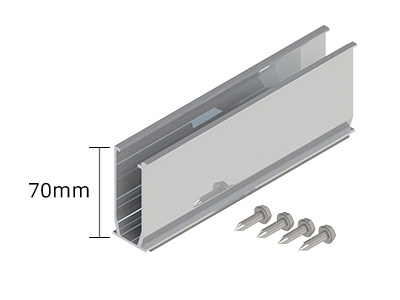

UI-SS04-70 is 70mm height.

Application Roof

The trapezoidal crest should be more than 20mm if install SS04/SS04-70 mounting kit.

UI-SS07 Installation :

Panel in portrait, SS07 are suggested.

There is no requirements for crest distance for SS07, the length of SS07 can be customized according to the roof crest. Better applicability.

Components Parts

UI-IC Mid clamp

♦Material：Al 6005-T5 & SUS 304 ♦Function：Fix panel on the rail in the inner part

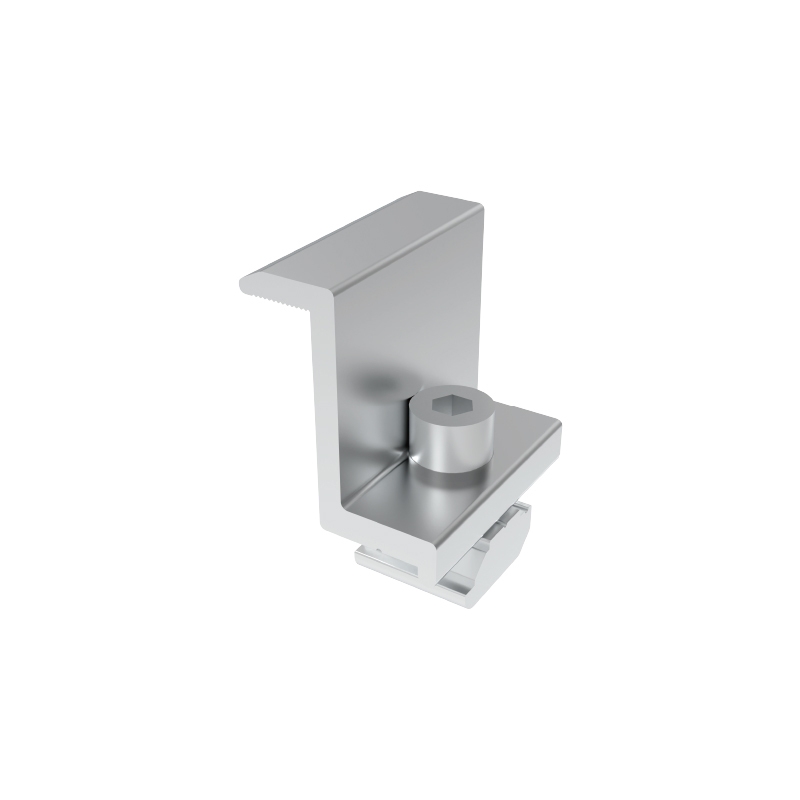

UI-EC End clamp

♦Material：Al 6005-T5& SUS 304 ♦Function：Fix panel on the rail at the end of panel


UI-SS04/UI-SS07 Mini Rail

♦Material：Al 6005-T5 ♦Function：Support Panels
