Jbl 3.1CH Soundbar Cinema SB550 - Black (1YR WRTY)

Step up your sound with the 3.1 channel JBL Cinema SB550 soundbar. 250 watts of powerful Dolby Audio in a compact design, plus extra deep, extra loud bass from a wireless 5.25” subwoofer will make everything you watch more exciting. A dedicated center channel means TV and film dialogue always sounds crystal clear. Set-up is simple, with a choice of either a one-cable HDMI ARC or optical connections. And when the TV is off, seamless Bluetooth connectivity means you can use it to play your favorite streaming music and podcasts from any device.

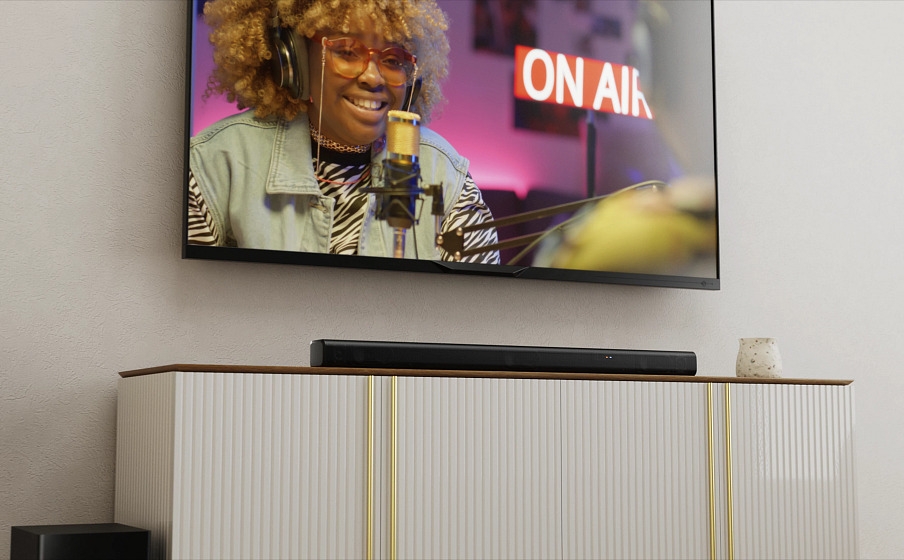

Dedicated center channel driver provides superior voice clarity

A dedicated center channel delivers film and TV dialogue with amazing clarity. You'll never ask "What did they just say?" again.

250W power output

Incredible, powerful sound for an immersive cinematic experience.

General Specifications

• Model: CINEMA SB550
• Sound system: 3.1 channel
• Power supply: 100 – 240V AC, ~ 50/60Hz
• Total speaker power output (Max @THD 1%): 250W
• Soundbar output power (Max @THD 1%): 150W
• Subwoofer output power (Max @THD 1%): 100W
• Soundbar transducer: 3x (45 x 100) mm racetrack drivers + 2x 13mm tweeters
• Subwoofer transducer: 5.25” (133 mm), wireless subwoofer
• Standby power: < 0.5 W
• Operating temperature: 0°C – 45 °C

Audio Specifications

• Frequency response: 45Hz – 20kHz (-10dB)
• Audio inputs: 1 Optical, Bluetooth, and USB
  • USB playback available in US version
  • For other versions, USB is for Service only

Dimensions

• Soundbar (W x H x D): 950 x 64 x 80 mm / 37.4’’ x 2.5’’ x 3.1’’
• Subwoofer (W x H x D): 200 x 324 x 250 mm / 7.9" x 12.8" x 9.9"
• Soundbar weight: 2.5 kg / 5.5 lbs
• Subwoofer weight: 4.2 kg / 9.3 lbs
• Packaging (W x H x D): 1025 x 235 x 397 mm / 40.4" x 9.3" x 15.6"
• Packaging weight: 8.8 kg / 19.4 lbs

Control and Connection Specifications

• USB port: Type A
• USB rating: 5V DC, 0.5A
• Supported file formats: mp3
• MP3 codec: MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
• MP3 sampling rate: 16 – 48 kHz
• Bluetooth version: 5.3
• Bluetooth profile: A2DP 1.3, AVRCP 1.6
• Bluetooth transmitter frequency range: 2400 MHz – 2483.5 MHz
• Bluetooth max. transmitting power: <10 dBm (EIRP)
• Bluetooth modulation: GFSK, π/4 DQPSK, 8DPSK
• 2.4G wireless transmitter frequency range: 2402 – 2481 MHz
• 2.4G wireless transmitter power: <10 dBm (EIRP)
• 2.4G wireless modulation: GFSK

Video Specifications

• HDMI ARC (Audio Return Channel): 1
• HDMI HDCP version: 1.4
