Konnwei ELM327 V1.5 Bluetooth 5.0 OBD2 Scanner OBDII Auto Car Diagnostic Tools OBD 2 Code Reader

ELM327 V1.5 (Bluetooth BT5.0 )Features:

* Small size, compact structure. Plug and never unplug* Stable wireless connection via Wireless BT5.0* No wires or batteries (adapter is powered by the 12V Vehicles battery)* 30 Minutes without communication, it will automatically go to sleep mode.* Ultra low cumsumption in sleep-mode, less than 10MA* Supports ALL OBDII protocols, widest coverages* The adapter uses the fast communication mode , up to 30PID/S.* True ON-OFF button, you can press the button to turn off the elm if not in use.

ELM327 V1.5 (Bluetooth BT5.0) Function List:

1.Read diagnostic trouble codes, both generic and manufacturer specific
2.Clear trouble codes and turn off the MIL ("Check Engine" light)
3.Display current sensor data, including:
4.Engine RPM
5.Calculated Load Value
6.Coolant Temperature
7.Fuel System Status
8.Vehicle Speed
9.Short Term Fuel Trim
10.Long Term Fuel Trim
11.Intake Manifold Pressure
12.Timing Advance
13.Intake Air Temperature
14.Air Flow Rate
15.Absolute Throttle Position
16.Oxygen sensor voltages/associated short term fuel trims
17.Fuel System status
18.Fuel Pressure

Connection method:

1.Plug in the KW901 to the OBD2 interface and Open the Phone's Bluetooth first

2.Open the software(like AUTO Doctor or Car Scanner)

3.Choose “Extras” then click “Connectivity ” choose "Bluetooth" and click “Device” choose "Konnwei"

4.Ensure that your device is connected to Konnwei then start the software

For IOS Connection:

For Android Connection method:

How to setup B-luetooth pairing: BLE5.0 Dual mode version

For Android users:
Home screen
Go to setting page
Select V-LINK Default password is “1234”
Device paired

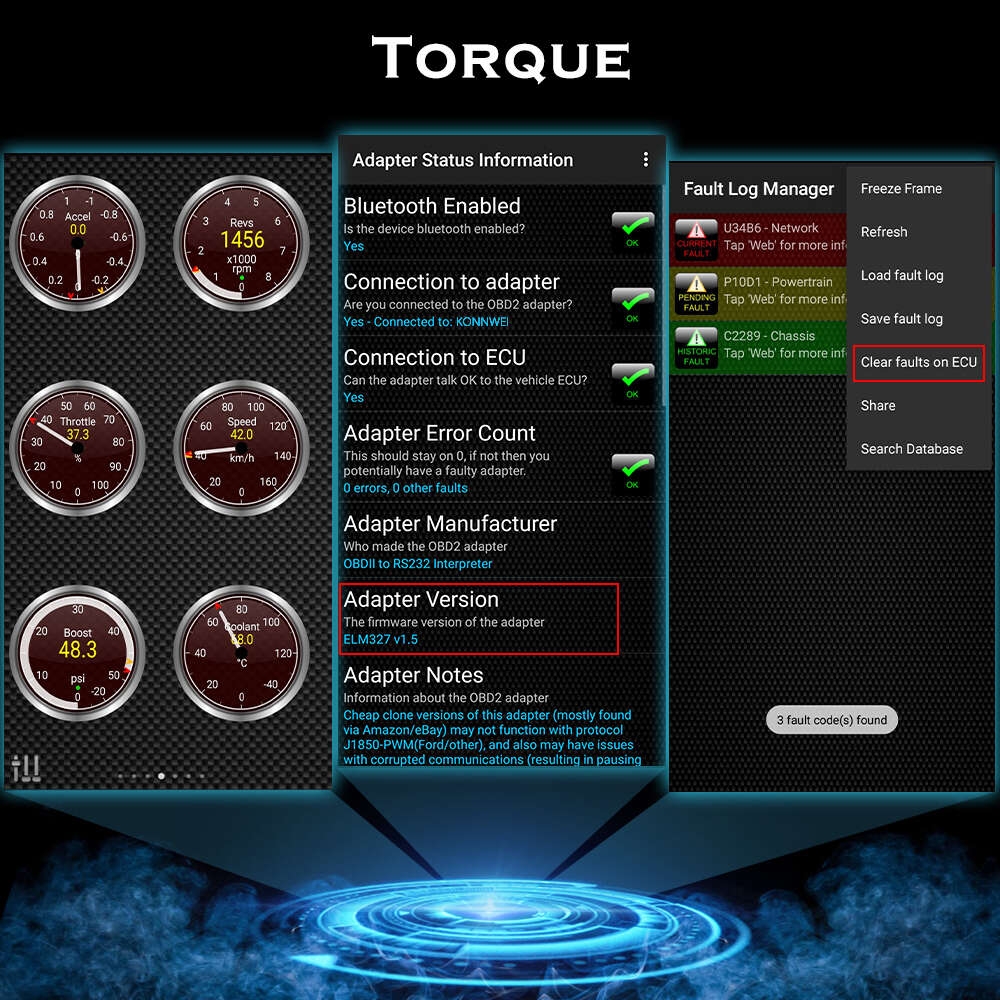

Run Torque app
Go to Torque app OBD II adapter setting
Choose connection type>Bluetooth
Choose B-luetooth device>V-LINK
Exit Torque app completely
Run Torque app
Connected

For iOS users:
Home screen
Go to setting page
Click on B-luetooth function
(Device name is invisible)
Run Accurate app
Go to Accurate app setting page
Select B-luetooth and connect
Exit Accurate app and run again
Connected

PACKING LIST

1* KW902 Wireless BT5.0 scanner (pic18f25k80 chip set)
1* English User Manual
