Jvc KW-M150BT Digital Media Monitor With Receiver With 6.8-inch Capacitive Monitor And Built-In Bluetooth(R) Wireless Technology

Smartphone Integration

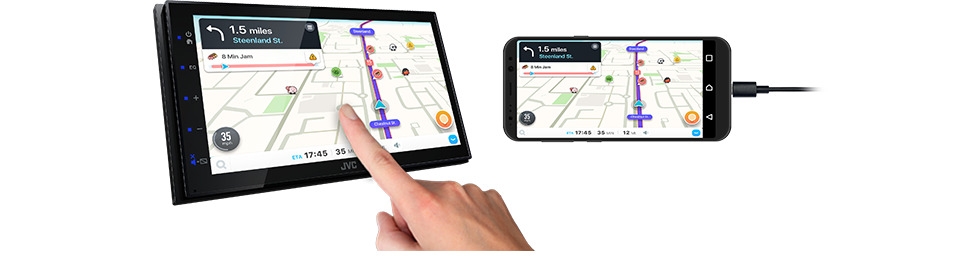

USB Mirroring for Android

Seamlessly display your Android phone on the JVC screen via USB. Touch control is supported from both screen and smartphone.

How to USE

Step-1 : Simply download the free Mirroring for JVC app.

Step-2 : Connect your smartphone via Bluetooth and USB.

Mirroring OB for JVC App
For more information, visit here.

You can enjoy apps like these and more!

Navigation App

Video App

SNS App

Bluetooth® Wireless Technology

Bluetooth Voice Recognition

Improved Sound Quality with HFP 1.6

Improved sound quality thanks to HD Voice contributes to a higher level of voice recognition accuracy.

Bluetooth AVRCP1.5 for Versatile Song Selection

In addition to repeat and random playback of music files, you can also easily search for songs using the browsing function. Just look for and choose the song you want to hear from the folder name and song name lists.

Sound Optimization

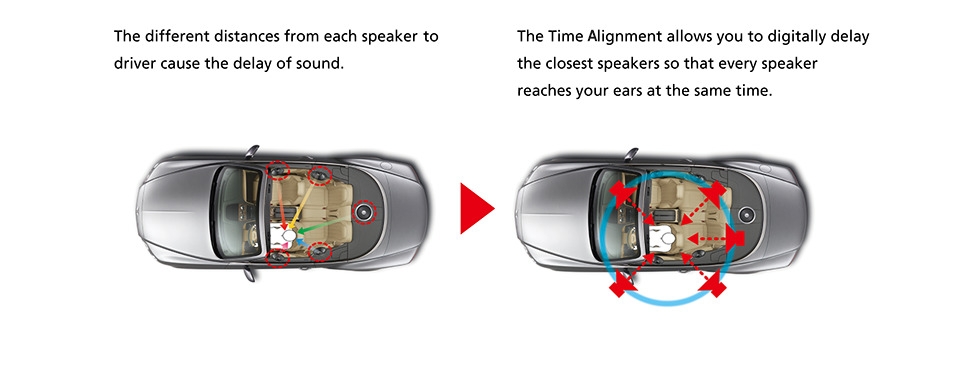

Time Alignment

By selecting the speaker type and the distance to the center of the listening position, the receiver will automatically adjust the timing of the sound output from each of the speakers so that the sound from each of the speakers will arrive exactly at the same time to the listening position.

13-Band Equalizer

Use the 13-Band Equalizer to manually adjust the sound to your taste.

General

Capacitive Touchscreen

Capacitive touch screen has high clarity and allows for easier functioning with lighter contact and greater accuracy.

Various Formats Compatible

Supports a variety of file formats for audio and video playback.

Short Chassis

The reduced depth of the chassis contributes to a weight reduction and facilitates easier installation.

Rear View Camera Ready

The Rear View Camera input allows you to connect an optional rear view camera (sold separately).
Rear view cameras allow you to safely back up your vehicle, monitor towing, and more.

• Waterproof design
• 1/4" color CMOS sensor with effective 380,000 pixels
• Flexible mounting bracket included
• Camera dimensions (WxHxD): 23.4mm x 23.4mm x 23.9mm
• Weight: 21g (Camera only)

Steering Wheel Remote Control Ready

Factory steering wheel control functions can be retained with a third-party adapter (sold separately).

Remote Control (Optional)

Remote control (RM-RK258) is optionally available.

• Technical Specifications
• Product Support

KW-M150BT

• digital multimedia player with AM/FM tuner (does not play CDs)
• plays media loaded with MP3, WMA, FLAC, and AAC music files
• 6.75″ capacitive touchscreen display
• fits double-DIN (4″ tall) dash openings
• Android screen-mirroring via USB
• built-in Bluetooth with dual phone connection for hands-free calling and music streaming
• built-in iPhone control and rapid Android charging via USB port
• plays USB memory devices
• 13-band graphic EQ with digital time alignment
• high- and low-pass filters
• inputs: rear USB input; backup camera input; rear A/V input (RCA)
• outputs: rear video output; 5-channel preamp outputs (2-volt front, rear, mono sub)
