TCL 24000BTU SPLIT AIR CONDITIONER ELITE SERIES

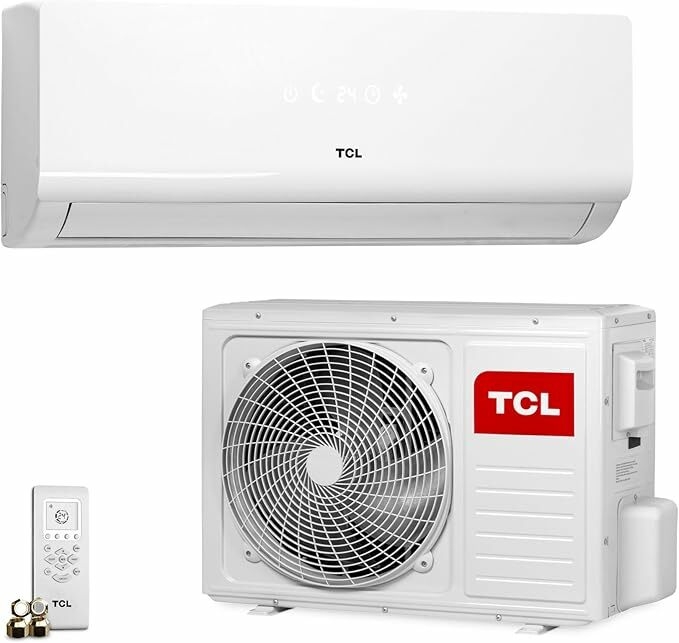

TCL 24000BTU TAC-24CHSA/KCI Elite Series Split Air Conditioner

BASIC INFORMATION

Panel –KC

Type –Heating pump

Model -TAC-24CHSA/KCI

Control type –Remote

Power supply –1Ph-220-240V~50Hz

Voltage Range –155~265 V

HEATING

Rated current –9.9(1.7~13) A

Capacity –7620(2000~8500) W

COP –11.98 W/W

Rated power Input –2170(350~2500) W

Max power Input –2500 W

Max current –13.0 A

ANUAL ENERGY CONSUMPTION

Annual energy consumption -5172 kwh

SIZE AND WEIGHT

Outdoor unit Dimension(W*D*H) -920×380×699mm

Outdoor unit Packing (W*D*H) -1020*475*845(with pipe)(900)mm

Outdoor unit Net/Gross weight -42/51.5(with pipe) Kg

Indoor unit Net/Gross weight -13/16 Kg

Indoor unit Dimension(W*D*H) –1010×315×220mm

Indoor unit Packing(W*D*H) –1096×390×297mm

MOISTURE REMOVAL

Moisture removal -2.4 Liters/h

NOISE

Indoor noise level -47 dB(A)

Outdoor noise level –55 dB(A)

COOLING(T3)

Rated current -10.7(1.7~12.0) A

EER -8.52 W/W

Capacity -5800(2000~8000) W

Rated power Input -2300(350~2500) W

Max power Input -2500 W

Max current –12 A

PACKAGE Connecting Wiring – 04×1.5mm2

Power supply cord –1.5mm2 H05VV-F

COOLING (T1)

Rated current -9.8(1.7~12.0)

EER -11.16 W

Max power Input –2500 W

Max current –12.A

INDOOR AIR FLOW (Hi)

Suitable area -30~50 m2

Indoor air flow (Hi) –1100 m3/h

WARRANTY – 1 YEAR
