VoltEra 30A 2USB Intelligent Regulator Solar Charge Controller/Solar Panel Battery Controller

Solar Charge Controller 30A Solar Panel Battery Controller PWM Solar Controller Intelligent Regulator Adjustable LCD Display
Description:
Type:Solar Power Meters
Material:ABS+component
Power:12V/24V Display Type:LCD Display Interface:Dual USB
Package List: 1x Solar Panel Battery Charge Controller Feature: Security instructions: 1. Make sure that the battery has enough voltage for the controller to recognize the type of battery before first installation.2. The battery cable should be as short as possible to minimize losses. 3. The regulator is only suitable for lead-acid batteries: OPEN, AGM, G-EL It is not suitable for nickel metal hydride batteries, lithium ions or batteries. 4. The charge controller is only suitable for the regulation of solar modules. Never connect another load source to the charge controller.

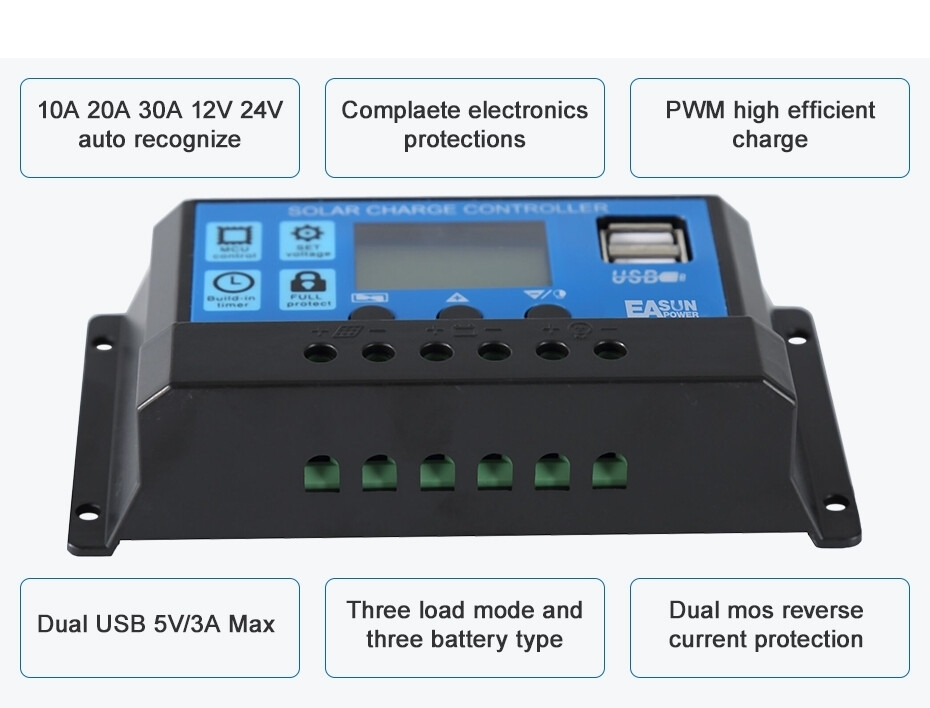

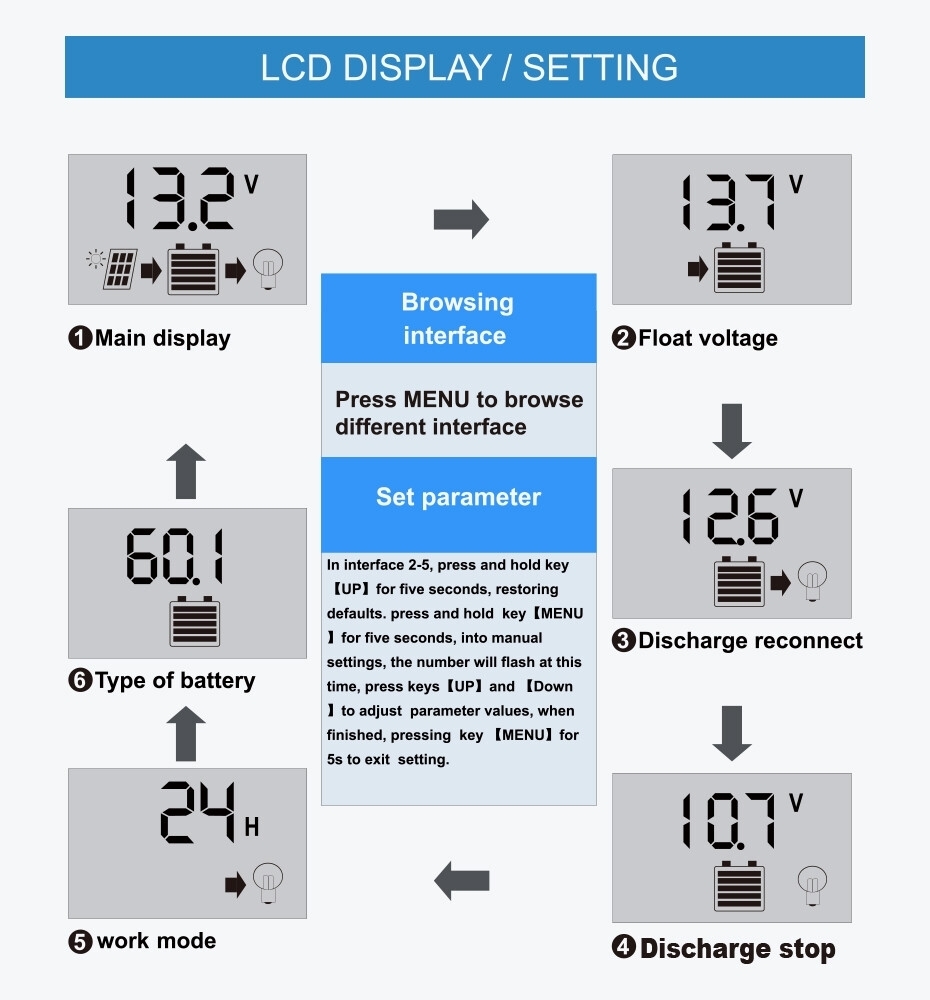

Characteristics: 1. Build-in industrial microcontroller.2. One-key configuration, digital display, automatic memory function. 3. Fully pwm-load management load. 4. Build-in short circuit protection, open circuit protection, reverse protection, over load protection5. Dual mosfet Reverse current protection, low heat productions.

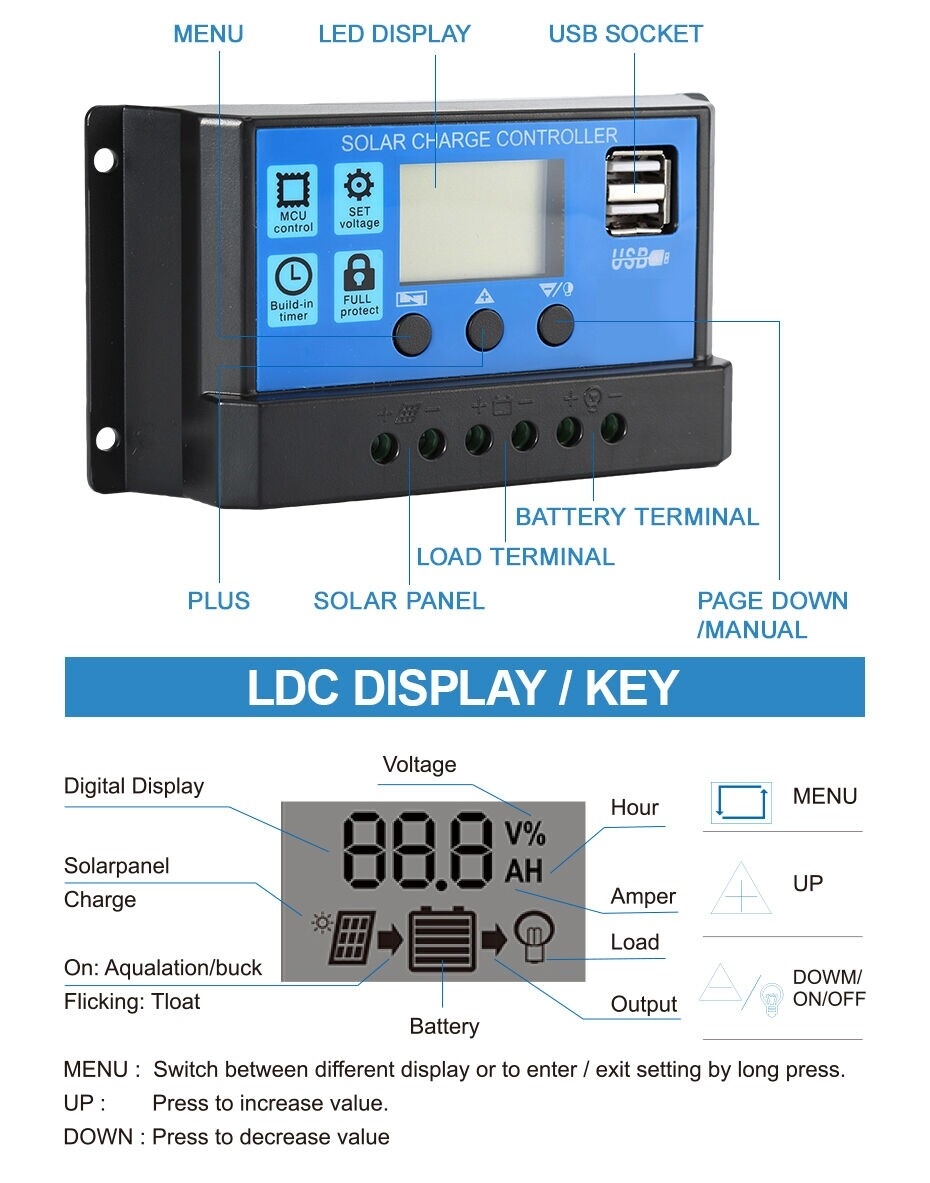

Connection of the system: 1. Connect the battery to the charge controller plus and minus. 1 will be displayed, in case of detecting 12 V battery, 2 in case of detecting 24 V battery. 2. Connect the photovoltaic module to the plus and minus regulator. 3. Connect to the consumer for the charge controller plus and minus. the reverse order applies when uninstalling! An incorrect sequence order can damage the controller! Notes: 1.Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you! 2.Please allow 1-3cm measuring deviation due to manual measurement.
