60M USB HDMI Extender Over CAT5E Cat6 RJ45

Product details

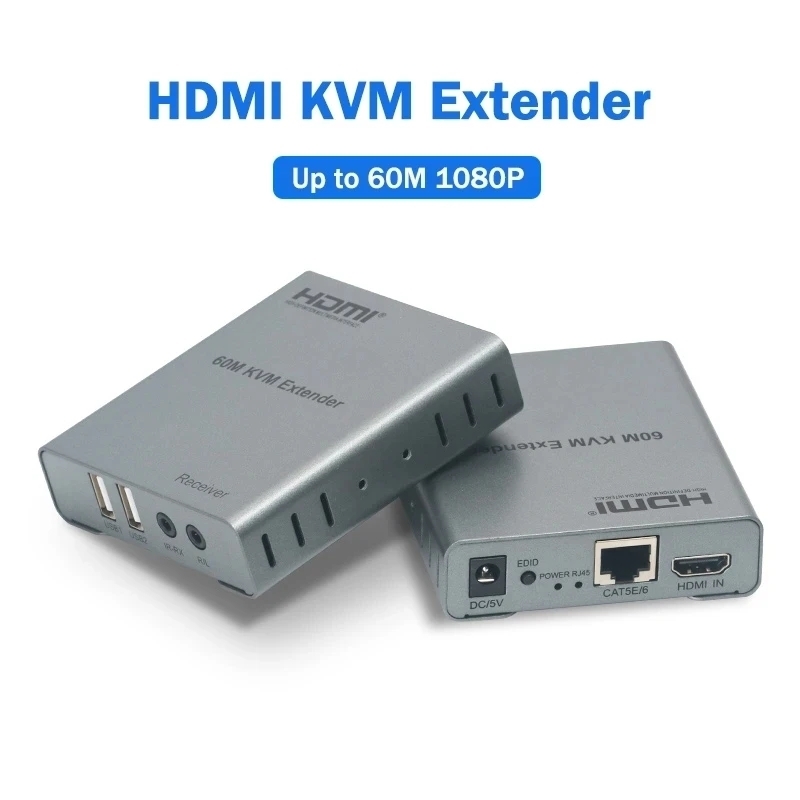

60M USB KVM HDMI Extender over CAT5E Cat6 RJ45 Ethernet Cable 1080P HDMI USB Extender Transmitter for DVR PC Laptop TV Monitor


HDMI KVM Extender over Cat5/6 Ethernet Cable to 60M 1080P 60Hz HDMI USB Extension Audio Video Transmitter Support Mouse KeyboardThis USB HDMI KVM Extender lets you control a PC from up to 60m away over a single qualified Cat 5e or Cat 6 cable connection,with uncompressed 1080p HDMI video.A flexible solution for powering large high-definition displays remotely.This HDMI USB extender supports uncompressed 1080p or 1920x1200 video resolutions at maximum distance.Features&speicifications:1.Control a PC at a distance up to 60M via USB mouse&keyboard2.Supports PC resolutions up to 1080P/60hz.3.Video&audio over hdmi port supported4.Hdmi audio extraction, both TX&RX supports 3.5mm stereo audio out.5.windows&mac supported6.Supports USB mouse&keyboard extension over ethernet cable.7.HDMI KVM extender with IR control.Connection and operation:1.Connect one HD cable between source device and TX Extender,the max cable distance is 10 meters;2.Connect one HDMI-compatible cable between display device and RX Extender,the max cable distance is 15 meters;3.Connect single cat-5e or cat-6(recommended) cables instead of HDMI-compatible cables between TX and RX Extender, the max cable distance is 60 meters;4.Connect 5V power supply to the TX and RX;5.LED indicator light:TX LED indicator light: When there is signal input, it turns blue;RX LED indicator light: When there is signal input, it turns blue;6.EDID on: The on can support the switch of EDID between 720P and 1080P.(1080P is the default EDID when the power is on).7.Plug the IR receiver cable into the receiver,and IR transmitter cable plug into the transmitter if you need the IR receiver cable,aim at the equipment which needs to control.8. Plug the mouse and keyboard into the two USB port of the receiver,and connect the USB port of the transmitter with the computer if you need the KVM control function.Package Included:1 x HDMI-compatible Transmitter1 x HDMI-compatible Receiver1 x IR receiver cable1 x IR transmitter cable2 x 5V power adapter1 x Manual
