Medical Electric Plaster Saw Cast Cutter Orthopedic Sports Medicine 110V 12500rpm/min (one set of plaster saw)

Product Description

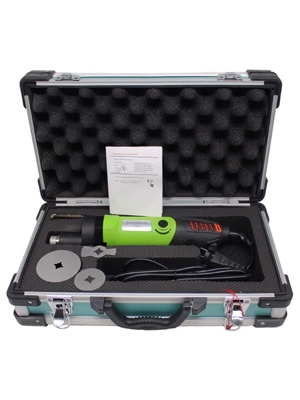

Package includes:

• 1 x Medical Electric Plaster Saw
• 2 x Circular Saw Blade
• 1 x Fan-shaped Saw Blade
• 1 x Wrench
• 1 x Carry Box
• 1 x Manual

Medical Electric Plaster Saw Cast Cutter Orthopedic Sports Medicine 110V 12500rpm/min

Main Technical Data:

• Voltage: AC 110V/60Hz
• Input Power: 125VA
• Non-load Frequency: more than 12500r/min
• Non-load Speed: ≤75dB
• Motor Winding Insulation Class: E Class
• Note: when have abnormal sound, vibration is too large, please maintenance in time

Before use, check whether the formation of saw blade, missing teeth, mounting, installing the saw blade when the blade shaft to be fixed, embedded with the pull head axis position of the flat side, with the other nuts in front of the saw blade wrench removed, exit concave sleeve and saw blade, saw blade and then put the other tightly, check the motor ventilation road, should be kept clear to prevent foreign objects clogging, resulting in poor ventilation, resulting in excessive temperature rise of the motor work, or even burn the motor

When used, not used much pressure, when the blade got stuck in the plaster bandage, it should cut off the power slowly withdraw, not to open when the power switch off, easy to damage the motor

The temperature of the motor housing using the increase over time, such as hot case temperature should be found to be suspended, wait to cool before using, or likely to cause motor overheating and burning

Should be wipe clean the plaster saw after operation, kept in dry places(relative humidity less than 80%, non corrosive gas environment) to prevent water and damage and stumble
