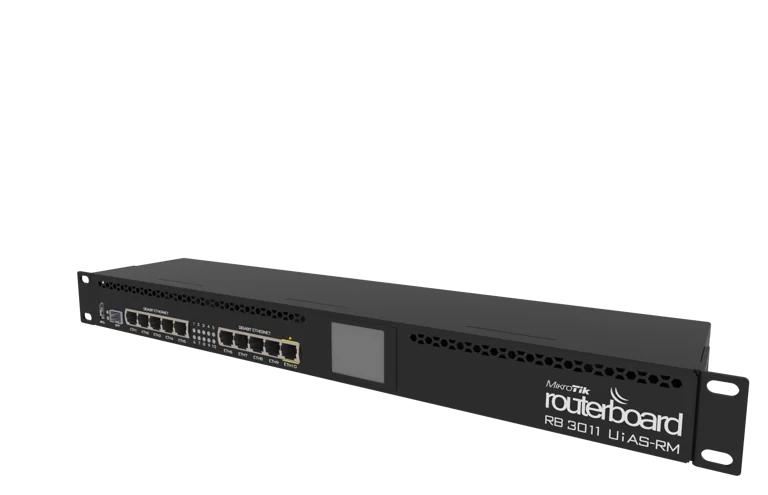

MikroTik RB3011UiAS-RM

RB3011UiAS-RM

1U rackmount, 10xGigabit Ethernet, SFP, USB 3.0, LCD, PoE out on port 10, 2x1.4GHz CPU, 1GB RAM, RouterOS L5

ARM

PoE

ROS v7

SFP/SFP+

SPECIFICATIONFIND RETAILER

The RB3011 is a new multi port device, our first to be running an ARM architecture CPU for higher performance than ever before. The RB3011 has ten Gigabit ports divided in two switch groups, an SFP cage and for the first time a SuperSpeed full size USB 3.0 port, for adding storage or an external 3G/4G modem.

RB3011UiAS-RM Unit comes with 1U rackmount enclosure, a touchscreen LCD panel, a serial console port and PoE output functionality on the last Ethernet port.

Specification

SPECIFICATIONS

• Product codeRB3011UiAS-RM
• Suggested price$179.00
• ArchitectureARM 32bit
• CPUIPQ-8064
• CPU core count2
• CPU nominal frequency1.4 GHz
• CPU Threads count2
• Switch chip modelQCA8337
• Dimensions443 x 92 x 44 mm
• RouterOS license5
• Operating SystemRouterOS v7
• Size of RAM1 GB
• Storage size128 MB
• Storage typeNAND
• MTBFApproximately 200'000 hours at 25C
• Tested ambient temperature-20°C to 70°C

POWERING

• Number of DC inputs2 (DC jack, PoE-IN)
• DC jack input Voltage10-30 V
• Max power consumption30 W
• Max power consumption without attachments10 W
• PoE inPassive PoE
• Cooling typePassive
• PoE in input Voltage10-30 V

POE-OUT

• PoE-out portsEther10
• PoE outPassive PoE
• Low voltage PoE-Out current limit600 mA
• Max total out (A)600 mA

ETHERNET

• 10/100/1000 Ethernet ports10

FIBER

• SFP ports1

PERIPHERALS

• Serial console portRJ45
• Number of USB ports1
• USB Power ResetYes
• USB slot typeUSB 3.0 type A
• Max USB current (A)1

OTHER

• PCB temperature monitorYes
• Voltage MonitorYes
• BeeperYes

CERTIFICATION & APPROVALS

• CertificationCE, EAC, ROHS
• IPIP20

INCLUDED PARTS

24V 1.2A power adapter

K-19 fastening set

Rack ears (black)

NOTE

The device has an operating system preinstalled and licensed. No separate purchase is necessary and the product is ready to use. The device includes free software updates for the life of the product or a minimum of 5 years starting from date of purchase.
