TP-Link Archer C64, AC1200 Wireless MU-MIMO WiFi Router - Black

AC1200 Dual Band WiFi Meets Your Smooth Network Needs

The Archer C64 allows you to connect more devices and stream simultaneously with its dual 2.4GHz and 5GHz bands. The 2.4GHz band provide reliable connections for sending emails, web browsing and other simple tasks. The 5GHz band delivers speed up to 867Mpbs, great for media-intense applications like video streaming and online gaming†. With a lag-free connection, you will never miss out again.

Technical Specifications

WIRELESS
Standards


Wi-Fi 5

• IEEE 802.11ac/n/a 5 GHz
• IEEE 802.11n/b/g 2.4 GHz

WiFi Speeds


• AC1200
• 5 GHz: 867 Mbps (802.11ac)
• 2.4 GHz: 400 Mbps (802.11n)

WiFi Range


3 Bedroom Houses

• 4× Fixed High-Performance Antennas
• Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming

• Concentrates wireless signal strength towards clients to expand WiFi range

WiFi Capacity


Medium

• Dual-Band
• Allocate devices to different bands for optimal performance

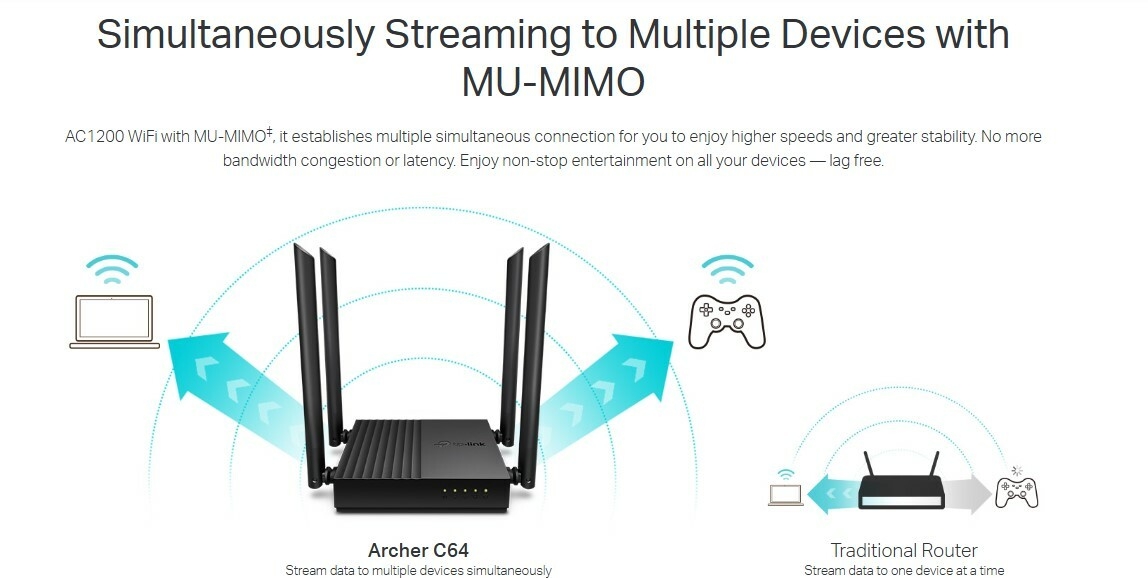

MU-MIMO

• Simultaneously communicates with multiple MU-MIMO clients

Airtime Fairness

• Improves network efficiency by limiting excessive occupation

Working Modes


• Router Mode
• Access Point Mode

SECURITY

• Network Security    SPI Firewall, IP and MAC Address Binding
• Guest Network    2.4 GHz Guest Network, 5 GHz Guest Network
• WiFi Encryption    WPA/WPA2, WPA-PSK/WPA2-PSK/WPA3-SAE encryptions

HARDWARE

• Processor    1.2 GHz CPU
• Ethernet Ports    1× Gigabit WAN Port, 4× Gigabit LAN Ports
• Buttons    WPS/Reset Button
• Power    12V = 1A

SOFTWARE
Protocols


• IPv4
• IPv6

EasyMesh


• Mesh networking creates smooth, fast, stable roaming. Archer C64 can flexibly build an EasyMesh network with EasyMesh-Compatible devices, which eliminates Wi-Fi dead zones, expand your network, and fill your entire home with high-speed Wi-Fi. Seamless Wi-Fi connections with one network name, one-click setting and flexible scalability.

Parental Controls


• URL Filtering
• Time Controls

WAN Types


• Dynamic IP
• Static IP
• PPPoE(Dual Access)
• PPTP(Dual Access)
• L2TP(Dual Access)

Quality of Service


• QoS by Device

Cloud Service


• OTA Firmware Upgrade
• TP-Link ID
• DDNS

NAT Forwarding


• Port Forwarding
• Port Triggering
• UPnP
• DMZ

DHCP


• Server
• DHCP Client List
• Address Reservation

DDNS


• TP-Link
• NO-IP
• DynDNS

Management


• Tether App
• Webpage

OTHER
System Requirements


• Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
• Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
• Cable or DSL Modem
• Subscription with an internet service provider (for internet access)

Certifications


• CE, RoHS

Environment


• Operating Temperature: 0℃~40℃ (32℉ ~104℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing

PHYSICAL
Dimensions (W×D×H)


• 4.7 × 4.7 × 1.1 in
• (120 × 120 × 27.9 mm)

Package Contents


• Wireless Router Archer C64
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide
