TP-Link LS1005G, 5-Port 10/100/1000Mbps Desktop Network Switch - Black

Technical Specifications

HARDWARE FEATURES

• Standards and Protocols    IEEE 802.3i/802.3u/ 802.3ab/802.3x
• Interface    5× 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports
• Fan Quantity    Fanless
• External Power Supply    External Power Adapter (Output: 5VDC/0.6A)
• Dimensions ( W x D x H )    3.5 × 2.8 × 0.9 in. (90 × 72 × 23 mm)
• Max Power Consumption    3.7W
• Max Heat Dissipation    12.617 BTU/h

PERFORMANCE

• Switching Capacity    10 Gbps
• Packet Forwarding Rate    7.4 Mpps
• MAC Address Table    2K
• Packet Buffer Memory    1.5 Mb
• Jumbo Frame    16 KB

SOFTWARE FEATURES

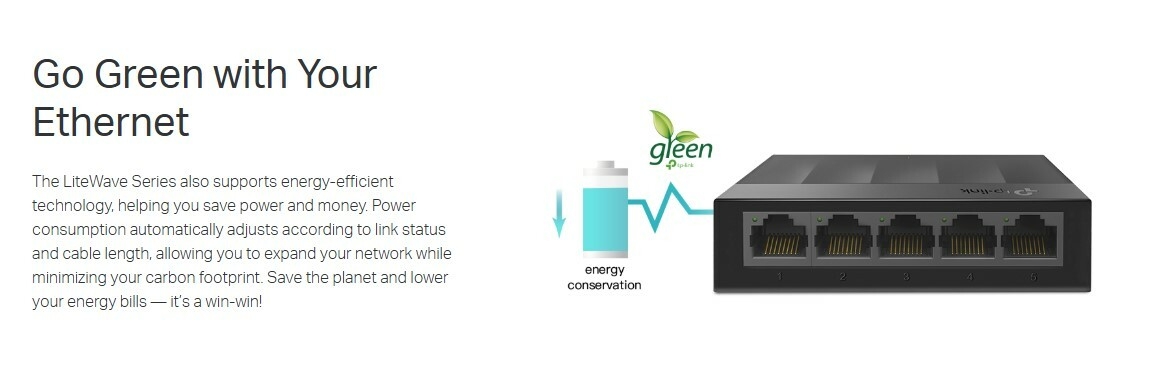

• Advanced Features    Green Technology
• 802.3X Flow Control
• Back Pressure
• Transfer Method    Store and Forward

OTHERS
Certification


• CE, FCC, RoHS

Package Contents


• 5-Port 10/100/1000Mbps Desktop Switch
• Power Adapter
• Installation Guide

Environment


• Operating Temperature: 0°C~40°C (32°F~104°F)
• Storage Temperature: -40°C~70°C (-40°F~158°F)
• Operating Humidity: 10% ~ 90% non-condensing
• Storage Humidity: 5%~90% non-condensing
