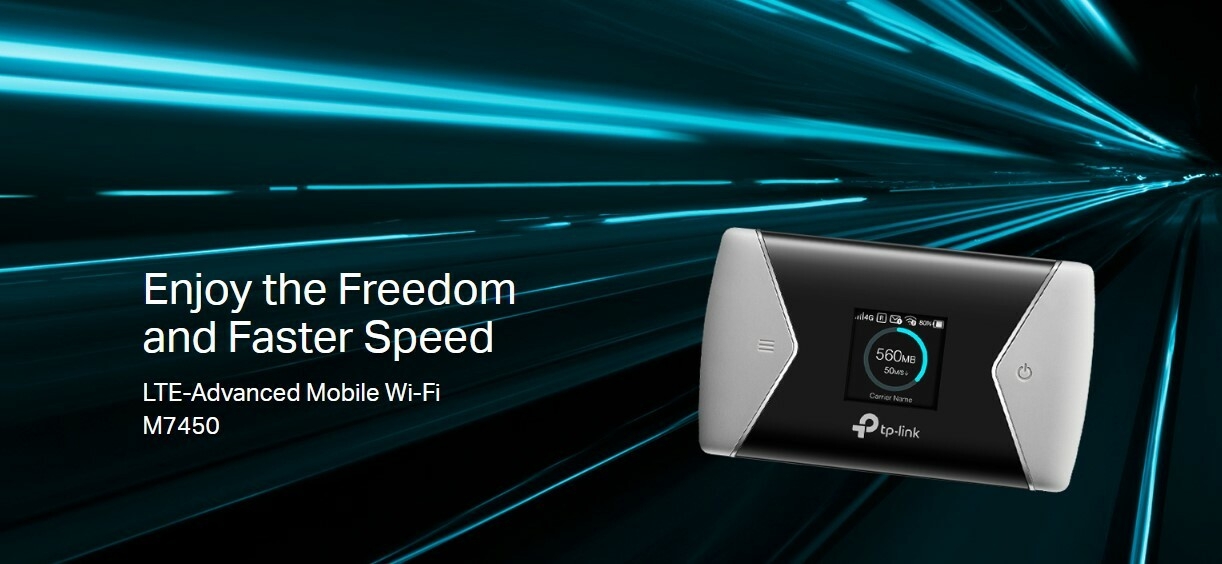

TP-Link M7450, 300Mbps LTE-Advanced Mobile Wi-Fi - White

Technical Specifications

HARDWARE FEATURES
Interface


• 1 micro USB port for power supply
• 1 Micro SIM card slot
• 1 Micro SD card slot

Button


• Power On/Off，Menu

Power Supply


• 3000mAh Rechargeable Battery

Network Type V1


• FDD-LTE: B1/B3/B7/B8/B20(2100/1800/2600/900/800MHz)
• TDD-LTE: B38/B40/B41 (2600/2300/2500MHz)
• DC-HSPA+/HSPA/UMTS: B1/B8(2100/900MHz)
• EDGE/GPRS/GSM: 850/900/1800/1900MHz

Network Type


• FDD-LTE: B1/B3/B7/B8/B20(2100/1800/2600/900/800MHz)
• TDD-LTE: B38/B40/B41 (2600/2300/2500MHz)
• DC-HSPA+/HSPA/UMTS: B1/B8(2100/900MHz)
• EDGE/GPRS/GSM: 850/900/1800/1900MHz

Data Rates


• DL: 300Mbps, UL: 50Mbps

Dimensions ( W x D x H )


• 112.5*66.5*16mm

Antenna


• Internal Antenna

Micro SD Card Reader


• Up to 32GB

Screen Display


• 1.44 inch TFT

WIRELESS FEATURES

• Wireless Standards    IEEE 802.11a/b/g/n/ac 300Mbps at 2.4GHz or 867Mbps at 5GHz
• Frequency    2.4GHz&5GHz
• Transmit Power    <33dBm
• Wireless Security    Support WPA-PSK/WPA2-PSK, Wireless MAC Filtering,
• DHCP    DHCP server, DHCP Client List

OTHERS

• Certification CE, RoHS
• Package Contents    300Mbps LTE-Advanced Mobile Wi-Fi M7450, Micro USB Cable
• Nano to Micro SIM Card Adapter, 3000mAh Battery, Quick Installation Guide
• System Requirements    Windows 10/8/7/vista/XP, Mac OS, Android, iOS, Windows Phone
