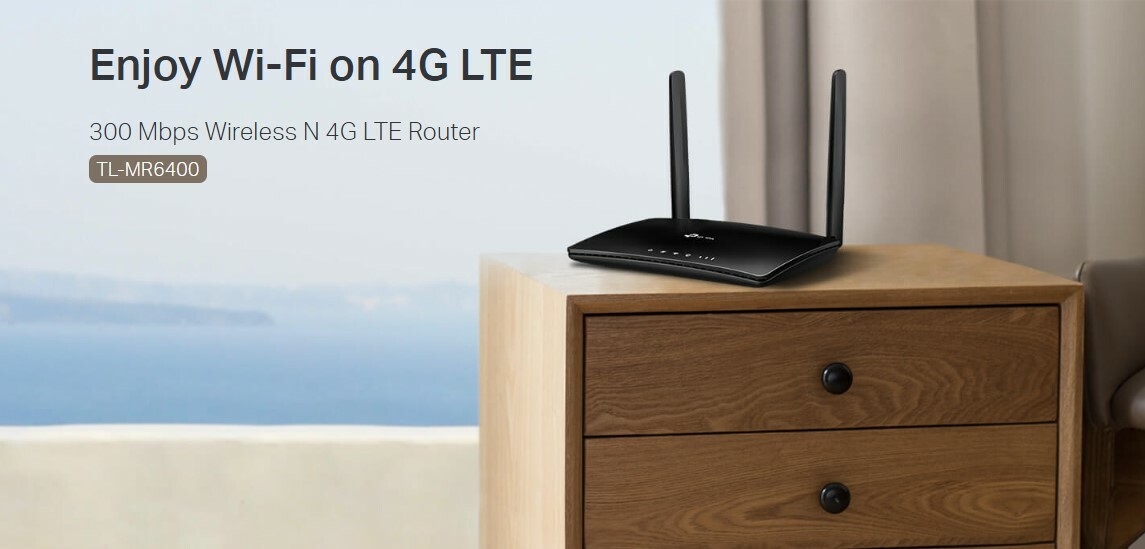

TP-Link TL-MR6400, 300 Mbps Wireless N 4G LTE Router

Wi-Fi Where You Need It

Enjoy unmatched convenience and versatility. Tested in the field for years to ensure universal compatibility with 2 advanced LTE antennas to deliver a smooth connection. Simply plug in a micro SIM card and power on this elegant piece of technology to utilize fast and stable Wi-Fi, whether you’re at home or working remote.

Technical Specifications

HARDWARE FEATURES

• Ports    3× 10/100 Mbps LAN ports, 1× 10/100 Mbps LAN/WAN Port, 1× Nano SIM Card Slot
• Button    WPS/RESET Button, WiFi ON/OFF Button
• External Power Supply(EU)    9V/0.85A
• Dimensions ( W x D x H )    6.85 × 4.9 × 1.32 in. (174 × 124.5 × 33.5 mm)
• Antenna Type    2× Detachable External 4G LTE Antennas

WIRELESS FEATURES
Wireless Standards


• IEEE 802.11b, 802.11g, 802.11n

Frequency


• 2.4 GHz

Signal Rate


• 300 Mbps at 2.4 GHz

Reception Sensitivity


• 11g 54M: -74 dBm
• 11n HT20: -71 dBm
• 11n HT40: -67 dBm

Transmit Power


• <20 dBm (2.4 GHz)

Wireless Functions


• Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics

WAN Failover


• Yes

Wireless Security


• 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions

Network Type


• 4G: FDD-LTE Cat4 (800/900/1800/2100/2600 MHz),
• TDD-LTE (2300/2500/2600 MHz)
• 3G: DC-HSPA+/HSPA+/HSPA/UMTS (900/2100 MHz)


SOFTWARE FEATURES

• Quality of Service    WMM, QoS
• Operating Modes    3G/4G Router, Wireless Router
• Management    Access Control, Local Management, Remote Management
• WAN Connection Type    Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)
• DHCP    Server, Client, DHCP Client List, Address Reservation
• Port Forwarding    Virtual Server, Port Triggering, UPnP, DMZ
• Dynamic DNS    TP-Link DDNS, DynDns, NO-IP
• VPN Pass-Through    PPTP, L2TP, IPSec
• Access Control    Parental Controls, Local Management Control, Host List, Access Control
• Firewall Security    DoS, SPI Firewall, IP and MAC Address Binding
• Protocols    Supports IPv4 and IPv6
• Guest Network    2.4 GHz Guest Network
• VPN Server    PPTP VPN, OpenVPN

OTHERS
Certification


• CE, RoHS

Package Contents


• 300Mbps Wireless N 4G LTE Router TL-MR6400
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide

System Requirements


• Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, MAC OS, NetWare, UNIX or Linux
• Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 browser or higher, or other Java-enabled browsers
• Nano SIM Card

Environment


• Operating Temperature: 0℃~40℃ (32℉ ~104℉)
• Storage Temperature: -40℃~60℃ (-40℉ ~140℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
