TP-Link TL-SG1008MP, 8-Port Gigabit Desktop/Rackmount Switch with 8-Port PoE+

Professional High-Power 8-Port Gigabit Desktop/Rackmount Switch with 8-Port PoE+

Technical Specifications

HARDWARE FEATURES
Interface


• 8 10/100/1000Mbps RJ45 Ports
• AUTO Negotiation/AUTO MDI/MDIX


Network Media


• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)
• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
• EIA/TIA-568 100Ω STP (maximum 100m)


Fan Quantity


• 1

Physical Security Lock


• No

Power Supply


• 100-240VAC, 50/60Hz

Packet Forwarding Rate


• 11.904 Mpps

PoE+ Ports(RJ45)


• Standard: 802.3af/at compliant
• PoE+ Ports: 8 Ports
• Power Supply: 153W


Mac Address Table


• 4K

Buffer Size


• 1.5Mbits

Jumbo Frame


• 16 KB

Switching Capacity


• 16Gbps

Dimensions ( W x D x H )


• 11.6*7.1*1.7 in. (294*180*44 mm)

Mounting


• Desktop/Rack Mountable

Max Power Consumption


• 8.77 W(220V/50Hz. no PD connected)
• 172.49 W(110V/60Hz. with 153W PD connected)


Max Heat Dissipation


• 29.91 BTU/h(no PD connected)
• 588.19 BTU/h(with 153W PD connected)


SOFTWARE FEATURES
Advanced Features


• Compatible With IEEE 802.3af/at Compliant PDs
• Priority Function
• Mac Address Auto-Learning And Auto-Aging
• IEEE802.3x Flow Control for Full-Duplex Mode and Backpressure for Half-Duplex Mode

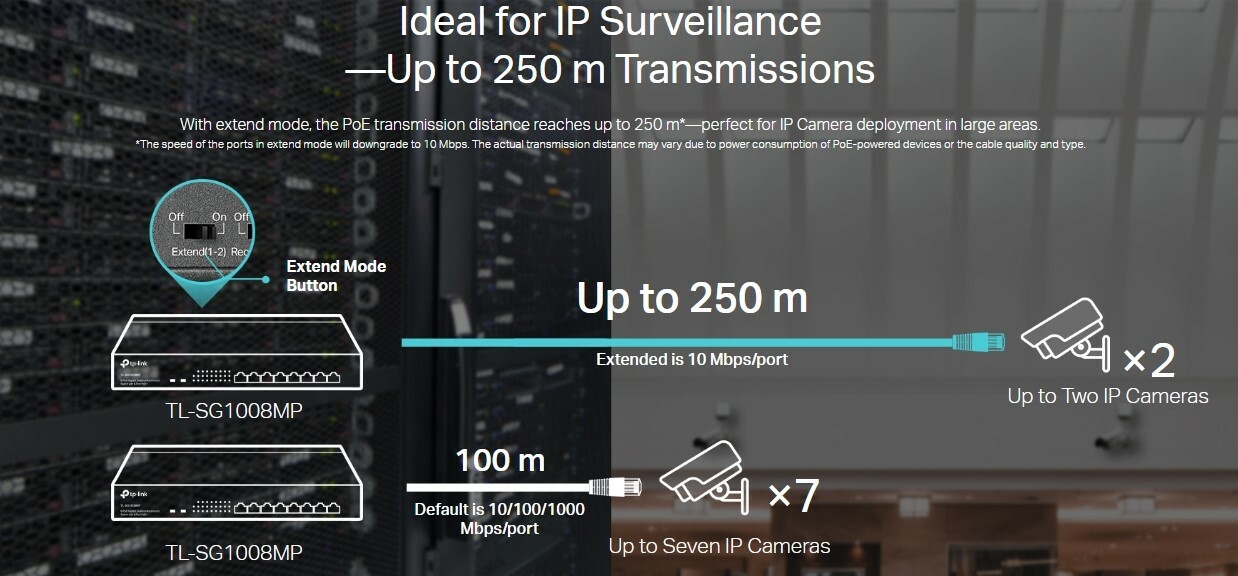

• Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission)
• PoE Auto Recovery (Ports 1-8)


Transfer Method


• Store-And-Forward

OTHERS
Certification


• FCC, CE, RoHS

Package Contents


• TL-SG1008MP, Power Cord, Installation Guide, Rackmount Kit, Rubber Feet

Environment


• Operating Temperature: 0℃~50℃ (32℉~122℉)
• Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
