TP-Link TL-WA1201, AC1200 Wireless Access Point

Gigabit-Class Wired Performance

The gigabit Ethernet port makes full use of gigabit-class bandwidth provided by a local ISP to ensure reliable network connections. It also provides an ultra-fast connection for wired devices such as PCs, and game consoles, etc.

Deploy Anywhere with Just One Cable

Power over Ethernet (PoE) allows your Ethernet cable to carry electrical power and data simultaneously, making deployment effortless and flexible. An elegant appearance and simple mounting design make it easy to attach the Access Point to any wall or desktop, blending in perfectly with most interior decoration.

Captive Portal Marketing

Captive Portal provides a secure guest network and offers unique marketing opportunities, especially for small businesses like cafes or salons. Utilize a flexibly designed portal page—requiring customers to view an advertisement or accept a set of terms for internet access—to improve brand awareness or deliver marketing messages.

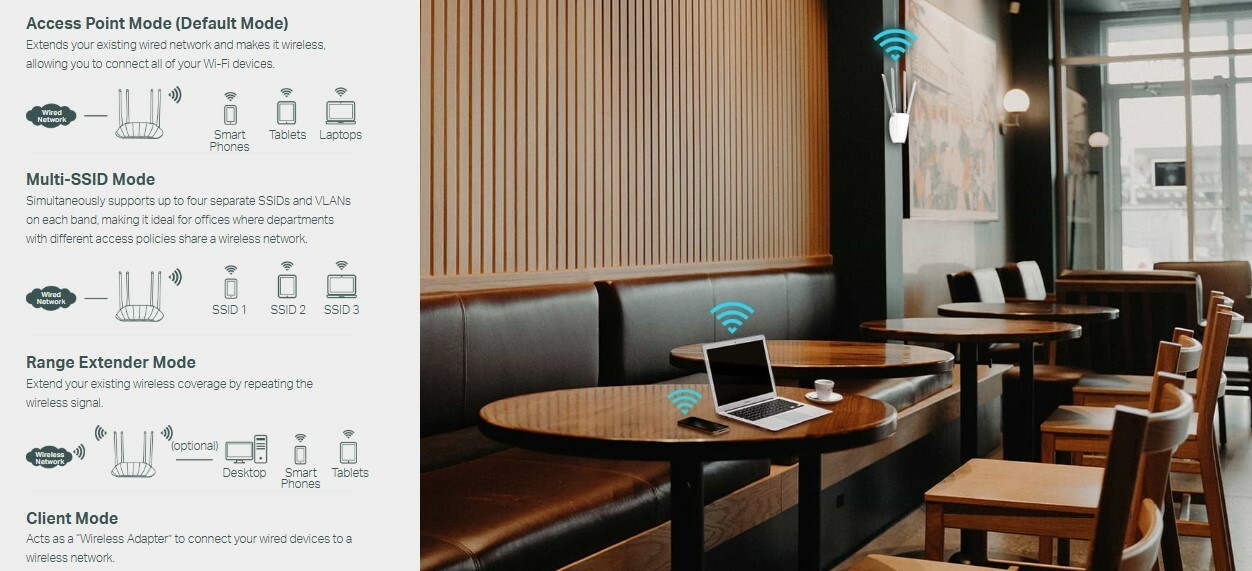

Multi-Mode 4 in 1

Multiple operation modes are supported to give you full flexibility to tailor the Access Point to fit your network's needs.

Technical Specifications

• HARDWARE FEATURES
• Interface    1× 10/100/1000 Mbps Ethernet Port (Supports Passive PoE)
• Button    Power On/Off Button, WPS Button, Reset Button
• External Power Supply    12V/1.5A
• Wireless Standards    IEEE802.11b/g/n 2.4 GHz, IEEE 802.11ac/n/a 5 GHz
• Dimensions ( W x D x H )    8.9 × 5.7 × 1.5 in
• (225×145.5×37 mm)
• Antenna Type    4 Fixed High Performance Antennas


WIRELESS FEATURES
Frequency


• 2.4 GHz and 5 GHz

Signal Rate


• Version1/2: 867 Mbps at 5 GHz, 300 Mbps at 2.4 GHz
• Version3: 867 Mbps at 5 GHz, 400 Mbps at 2.4 GHz

Reception Sensitivity


5 GHz:

• 11a 6 Mbps: -95 dBm, 11a 54 Mbps: -81 dBm
• 11ac VHT20(MCS0): -94 dBm, 11ac VHT20(MCS8): -71 dBm
• 11n HT40(MCS0): -91 dBm, 11n HT40(MCS7): -71 dBm
• 11ac VHT80(MCS0): -88 dBm, 11ac VHT80(MCS9): -63 dBm

2.4 GHz:

• 11g 54Mbps: -78 dBm
• 11n HT20(MCS0): -92 dBm, 11n HT20(MCS7): -74 dBm
• 11n HT40(MCS0): -88 dBm, 11n HT40(MCS7): -72 dBm


Transmit Power


• CE: <20dBm(2.4GHz), <23dBm(5.15GHz~5.25GHz)
• FCC: <30dBm(2.4GHz&5GHz)

Wireless Modes


• Access Point, Range Extender, Client, Multi-SSID

Wireless Functions


• Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics, Wireless Multicast Forwarding, DHCP Server, Access Control

Wireless Security


• 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA-PSK2 encryptions

DHCP


• Server, DHCP Client List

Quality of Service


• WMM

Advanced Functions


• Captive Portal

OTHERS
Certification


• CE, FCC, RoHS

Package Contents


• Wireless Access Point TL-WA1201
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide
• PoE Power Injector

System Requirements


• Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1,
• 10, MAC OS, NetWare, UNIX or Linux
• Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
• Java-enabled browser


Environment


• Operating Temperature: 0°C ~ 40°C(32°F ~ 104°F)
• Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
• Protocol Support    IPv4, IPv6
