TP-Link TL-WR841N, 300Mbps Wireless N Router

300Mbps Wireless N Speed - Fast Download Speed

TP-Link’s TL-WR841N is a high speed solution that is compatible with IEEE 802.11 b/g/n. Based on 802.11n technology, TL-WR841N gives users wireless performance at up to 300Mbps, which can meet your most demanding home networking needs, such as HD streaming, online gaming and large files downloading.

Technical Specifications

WIRELESS
Standards


• Wi-Fi 4 IEEE 802.11n/b/g 2.4 GHz


WiFi Speeds


• N300 2.4 GHz: 300 Mbps (802.11n)


WiFi Range


• 2 Bedroom Houses 2× Fixed Antennas
• WiFi Capacity    Legacy

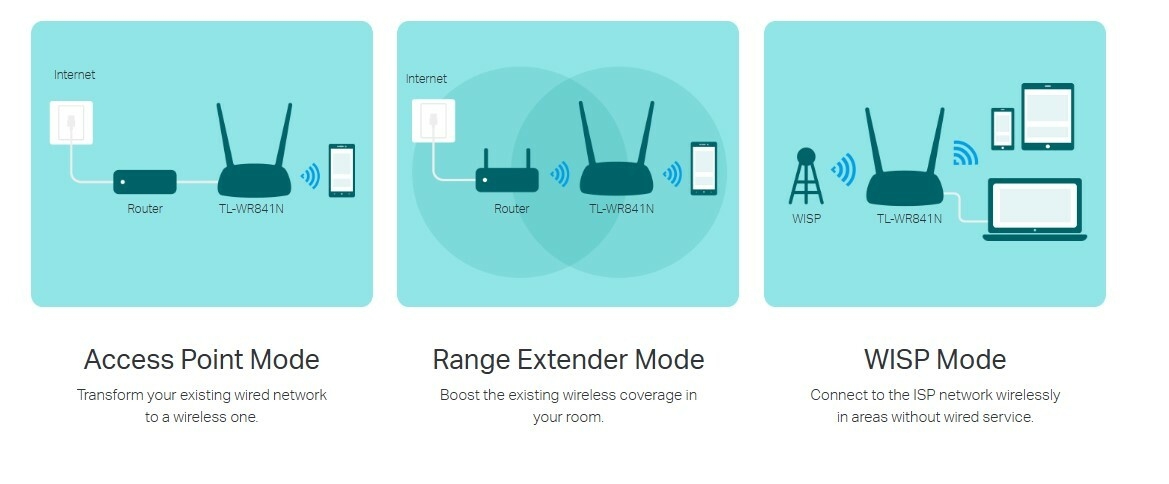

Working Modes


• Router Mode
• Access Point Mode
• Range Extender Mode
• WISP Mode


SECURITY
Network Security


• SPI Firewall
• Access Control
• IP & MAC Binding
• Application Layer Gateway


Guest Network


• 1× 2.4 GHz Guest Network


WiFi Encryption


• WEP
• WPA
• WPA2
• WPA/WPA2-Enterprise (802.1x)


HARDWARE
Processor


• Single-Core CPU


Ethernet Ports


• 1× 10/100 Mbps WAN Port
• 4× 10/100 Mbps LAN Ports


Buttons


• Reset Button


Power


• 9 V ⎓ 0.6 A

SOFTWARE
Protocols


• IPv4
• IPv6


Parental Controls


• URL Filtering
• Time Controls


WAN Types


• Dynamic IP
• Static IP
• PPPoE
• PPTP
• L2TP


Quality of Service


• QoS by Device


NAT Forwarding


• VIrtual Server
• Port Forwarding
• Port Triggering
• DMZ
• UPnP

DHCP


• Address Reservation
• DHCP Client List
• Server


DDNS


• NO-IP
• Comex
• DynDNS


OTHER
System Requirements


• Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
• Cable or DSL Modem (if needed)
• Subscription with an internet service provider (for internet access)


Certifications


• FCC, CE, RoHS


Environment


• Operating Temperature: 0℃~40℃ (32℉ ~104℉)
• Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing

PHYSICAL
Dimensions (W×D×H)


• 6.9 × 4.6 × 1.3 in
• (173 × 118 × 33mm)


Package Contents


• Wi-Fi Router TL-WR841N
• Power Adapter
• RJ45 Ethernet Cable
• Quick Installation Guide
