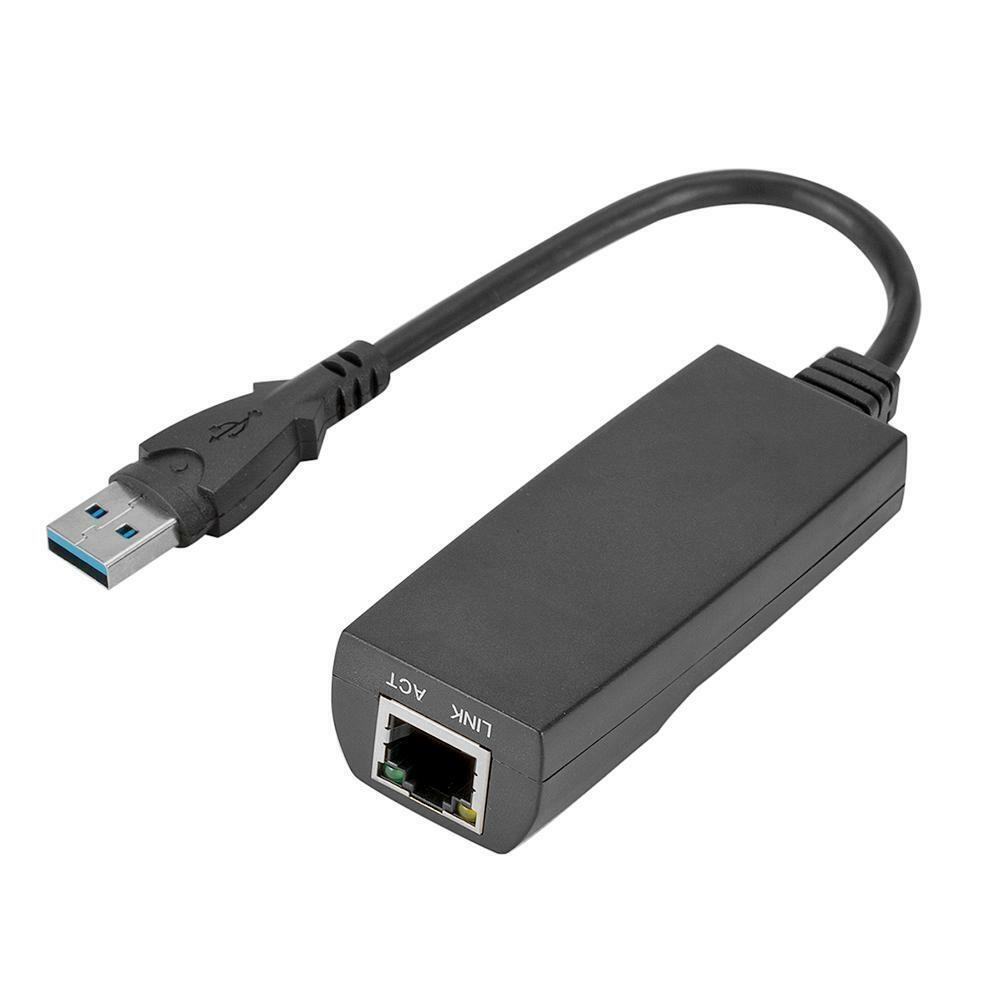

USB To RJ45 Lan Network Ethernet Adapter Converter

Product Description

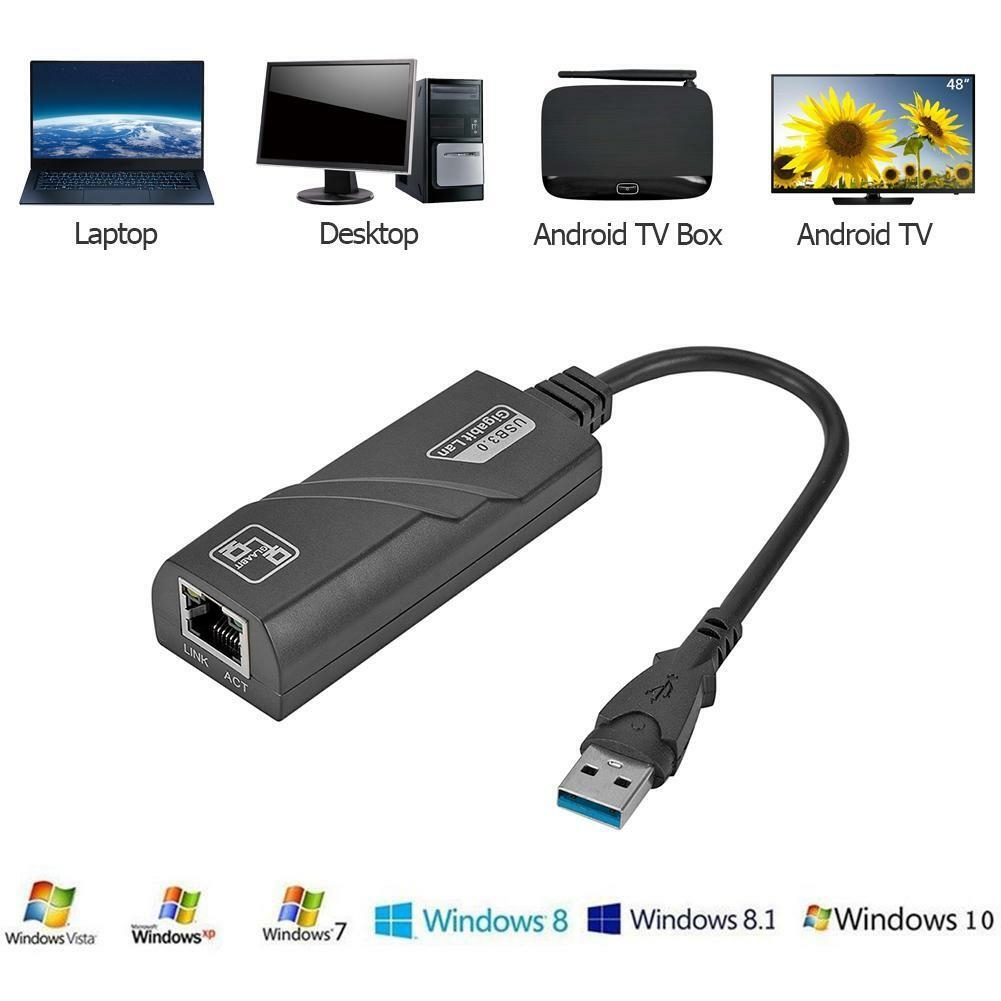

  USB To RJ45 Lan Network Ethernet Card * Adapter Converter * USB 3.0 And 2.0 * Your surfing & Communication Great Partner * For Laptops - Desktops - etc. * Suitable For Network Computing * Compatible With Windows - Macbook - Xiaomi Mi And Other OS.

This extremely portable, lightweight external LAN card adapter is ideal for networking.

It's of high-performance and enables you to deliver quicker connection time and up to three-times-faster data transfer speed than the previous adapters.

The adapter is backward compatible with USB 2.0, 1.1, and 1.0 specifications.

Its amazingly compact design makes it possible to be stuffed into the laptop case, wallet, or pockets while travelling.

With this dongle as your companion, you will definitely enjoy the and convenience of a high-speed connection.

Just connect it to your devices and enjoy high-speed wireless transmission anywhere any-time.



Product Details

 Product Name:  USB To RJ45 Lan Network Ethernet Adapter Converter  Type:  Card  Category:  LAN  Function:  Networking  Application:  Laptop, Desktop, Switches, etc.  Network Type:  ETHERNET  Installation Type:  External  Connection Type:  Wired  Power Source:  USB Port  Transmission Rate:  10/100/1000Mbps  Protocol:  802.11n  Input Interface Type:  RJ45 Female  Output Interface Type:  USB 3.0/2.0 Male  Transmission Speed:  Up To 1000 Mbps  Colour:  White - Black, etc.  Dimension:  28 X 3 x 2 CM  Material:  ABS & Alloy Metal  Product Weight:  Approximately 40 Grams  Certificate:  CE (EMC), ROHS, FCC, ROHS  Product Warranty:  1 Year



Main Features

• 100% new and high quality.
• Design-wise: Cute, decent, vivid colours, and stylish.
• Portability: Lightweight, ultra-mini & portable; More secure. Thus easy to use, handle, and carry.
• Supports plug and play technology.
• With an LED indicator, you can easily judge the network status.
• Built with the latest technology - AX88179 Chipset
• Integrates 10/100/1000Mbps Gigabit Ethernet MAC/PHY
• Supports all USB 3.0 power saving modes (U0, U1, U2, and U3)
• Integrates on-chip USB 3.0 PHY and controller compliant to USB Spec 3.0, 2.0 and 1.1
• PHY loop-back diagnostic capability
• Single-chip USB 3.0 to 10/100/1000M Gigabit Ethernet controller with Energy Efficient Ethernet (EEE) base on digital signal processing (DSP) technology with low dissipation
• Support Jumbo frame packets up to 9 KB
• Supports USB Super/High/Full Speed modes with Bus-power or self-power device auto-detect capability
• Supports full-duplex operation with IEEE 802.3x flow control and half-duplex operation with back-pressure flow control
• Support uto MDIX (straight and cross-network cable automatic detection)
• Supports crossover detection and auto-correction
• Supports IPv4/IPv6 packet Checksum Offload Engine (COE) to reduce CPU loading, including IPv4 IP/TCP/UDP/ICMP/IGMP & IPv6 TCP/UDP/ICMPv6 checksum check & generation
• Supports parallel detection and automatic polarity correction
• Supports power management offload (ARP & NS)
• Supports suspend mode and remote wake up via links and magic packs
• Supports suspend mode and remote wakeup via link-change, Magic Packet, Microsoft Wakeup Frame, and external wakeup pin
• Supports TCP Large Send Offload V1
• Compatible for: IEEE 802.1P Layer 2 Priority Encoding and Decoding, 802.1Q VLAN tagging and 2 VLAN ID filtering; received VLAN Tag (4 bytes) can be stripped off or preserved, 802.3, 802.3u and 802.3ab (10 Base-T, 100Base-TX and 1000Base-T.), 802.3az (Energy Efficient Ethernet).
• Compatible with 32-bit and 64-bit of all major operating systems such as: Windows 10/8.1/8.0/7/Vista/XP, Windows CE 7.0/6.0, Apple Mac OS X 10.6 to 10.9, and Linux Kernel.
• Made with lead-free and environmentally friendly materials for a better world.
• High quality: Extremely reliable and long service life.

Tips & Attentions

• Keep it away from moisture and liquid.
• In order to extend the life span of its cable, don't over-stretch it.
• To prevent signal interruption, keep away from WiFi, router, or other high-frequency transmitting equipment.



Notes

1. Due to the manual measuring technique, allow a slight measurement difference.
2. As a result of the difference between monitors colour calibration, the item colour displayed in photos may be showing slightly different from the real object.



Detailed Images
